The Takiyo 4-Meter Solar Street Light Pole is a durable galvanized steel pole designed for secure installation of solar street lights in residential, commercial, and other outdoor lighting applications.

Constructed from Q235 galvanized steel with a 1.5mm steel thickness, the pole provides a strong and practical mounting structure for outdoor solar lighting. Its sectional design consists of four 1-meter pole segments, making it easier to transport, handle, and assemble at the installation site.

The pole features a 220 × 220 × 8mm steel base flange and includes anchor bolts for secure installation on a properly prepared concrete foundation.

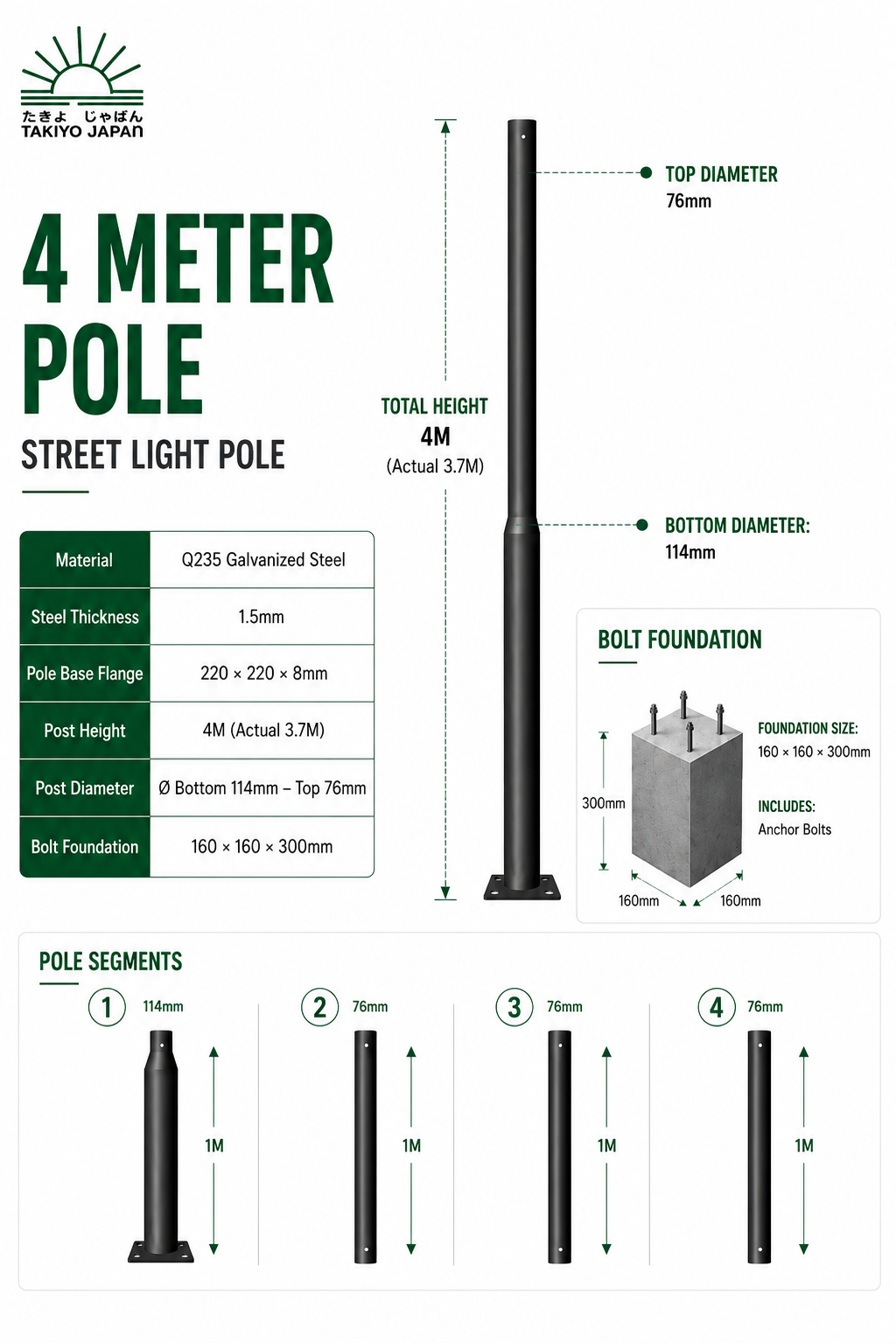

Product Specifications

• Material: Q235 Galvanized Steel
• Nominal Pole Height: 4 meters
• Actual Assembled Height: Approximately 3.7 meters
• Steel Thickness: 1.5mm
• Bottom Diameter: 114mm
• Top Diameter: 76mm
• Pole Base Flange: 220 × 220 × 8mm
• Pole Sections: 4 sections
• Section Length: 1 meter each
• Recommended Bolt Foundation Size: 160 × 160 × 300mm
• Foundation Hardware: Anchor bolts included

Sectional Design

The pole is supplied in four 1-meter sections, providing easier transportation, storage, handling, and on-site assembly. Once assembled, the pole has an approximate actual height of 3.7 meters.

Recommended Applications

Suitable for solar street light installations in:

• Residential properties
• Subdivisions and villages
• Private roads and driveways
• Parking areas
• Commercial properties
• Resorts and outdoor facilities
• Farms and agricultural properties
• Perimeter and security lighting
• Pathways and other outdoor areas

For best results, the appropriate solar street light, mounting bracket, pole height, and foundation should be selected according to the installation location and required lighting coverage.
